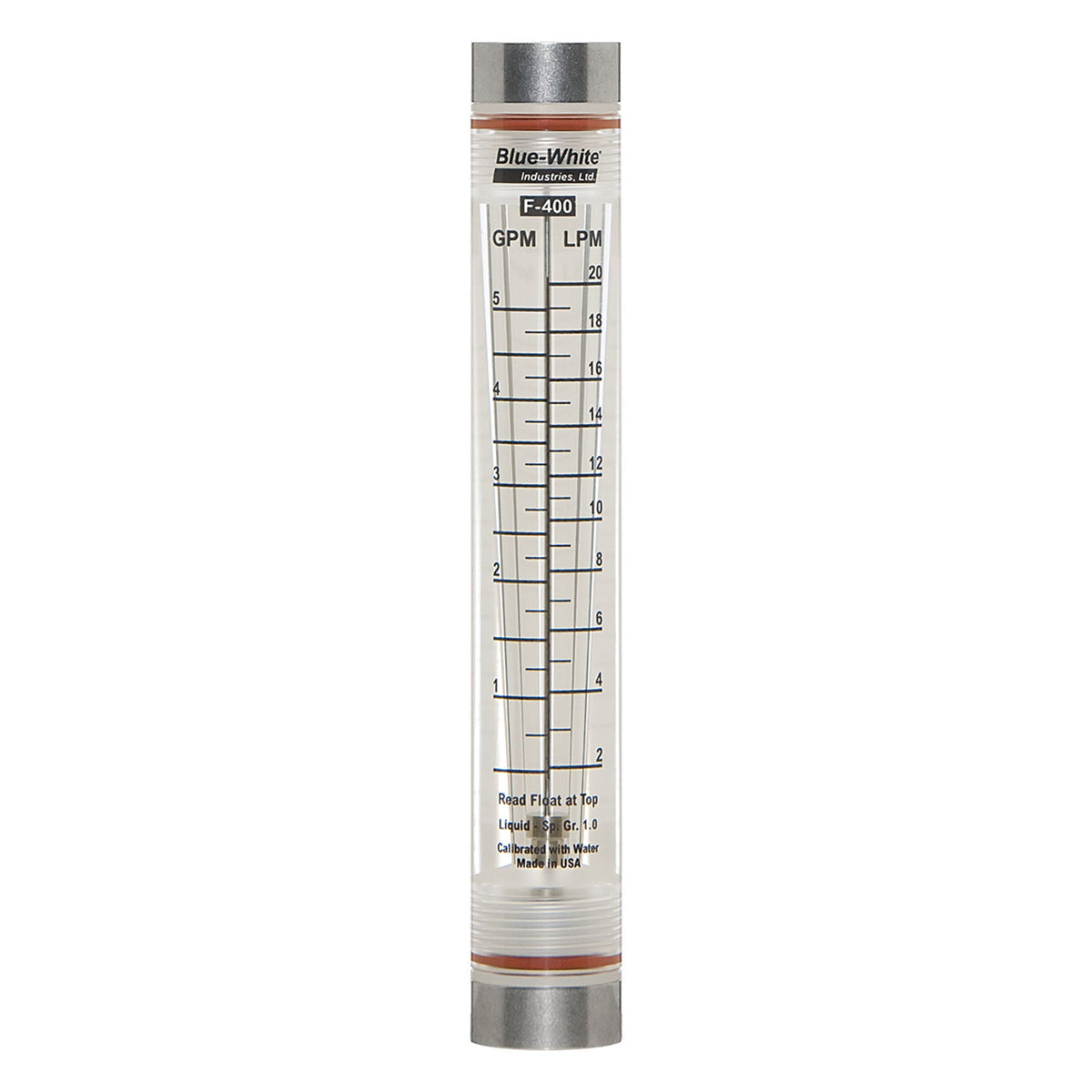

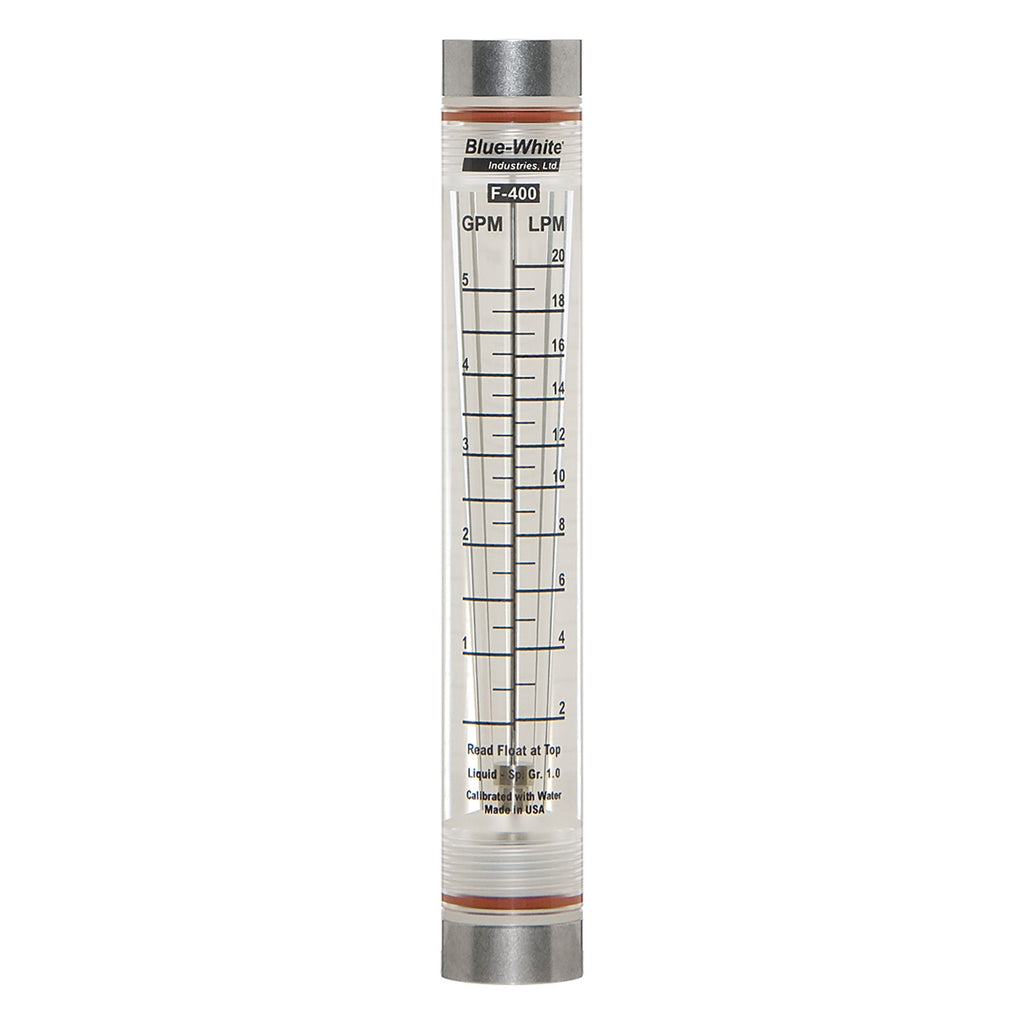

Blue-White 5106 F-400 Acrylic Flow Meters
Roll over image to zoom in Click on image to zoom
Blue-White 5106 F-400 Acrylic Flow Meters

F-400 Acrylic Flow Meters

Blue-WhiteSKU: 5106
Grid List
1/4 in. 0.025 - 0.25 GPM F-400 Acrylic Flow Meters
Size:
GPM:
Price:
$135.45
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/4 in. 0.025 - 0.25 GPM F-400 Acrylic Flow Meters
5106
$135.45
3/8 in. 0.025 - 0.25 GPM F-400 Acrylic Flow Meters
5107
$135.45
3/8 in. 0.1 - 1 GPM F-400 Acrylic Flow Meters
5108
$135.45
1/2 in. 0.1 - 1 GPM F-400 Acrylic Flow Meters
5109
$135.45
3/8 in. 0.2 - 2 GPM F-400 Acrylic Flow Meters
5110
$135.45
1/2 in. 0.2 - 2 GPM F-400 Acrylic Flow Meters
5111
$135.45
3/8 in. 0.3 - 3 GPM F-400 Acrylic Flow Meters
5112
$135.45
1/2 in. 0.3 - 3 GPM F-400 Acrylic Flow Meters
5113
$135.45
3/8 in. 0.5 - 5 GPM F-400 Acrylic Flow Meters
5114
$135.45
1/2 in. 0.5 - 5 GPM F-400 Acrylic Flow Meters
5115
$135.45
3/4 in. 1 - 10 GPM F-400 Acrylic Flow Meters
5116
$271.95
1 in. 1 - 10 GPM F-400 Acrylic Flow Meters
5117
$271.95
3/4 in. 1 - 17 GPM F-400 Acrylic Flow Meters
5118
$271.95
1 in. 1 - 17 GPM F-400 Acrylic Flow Meters
5119
$271.95
3/4 in. 5 - 21 GPM F-400 Acrylic Flow Meters
5120
$271.95
1 in. 5 - 21 GPM F-400 Acrylic Flow Meters
5121
$271.95

Product has been added to your cart

Please input the Quantity!

Description

F-400 Series Flow Meters are machined of high-quality annealed acrylic and polished to a clear finish. Scales are screen printed on the meter body with a white back reflector for easy reading. Adapters are polypropylene reinforced with aluminum stress rings for added strength, and o-rings are FKM.

Features:

  • Durable, highly polished, one piece meter body.
  • Annealed for added strength and chemical resistance.
  • Acceptable for outdoor installations (acceptable in direct sunlight)
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • Standard 316 stainless floats and guide rods

Specifications:

  • Max. Working Pressure: 150 psig at 70 degrees F
  • Max. Fluid Temperature: 150 degrees F at 0 PSI
  • Full Scale Accuracy: +/- 5 percent
  • Meter Body Material: Acrylic
  • Float Material: 316 SS, PVDF or PTFE (varies by model)
  • O-ring Seal Material: FKM
  • Adapter Material: Polypropylene
  • Approx. Shipping Weight: 1/2 lb.

Downloads


None available
