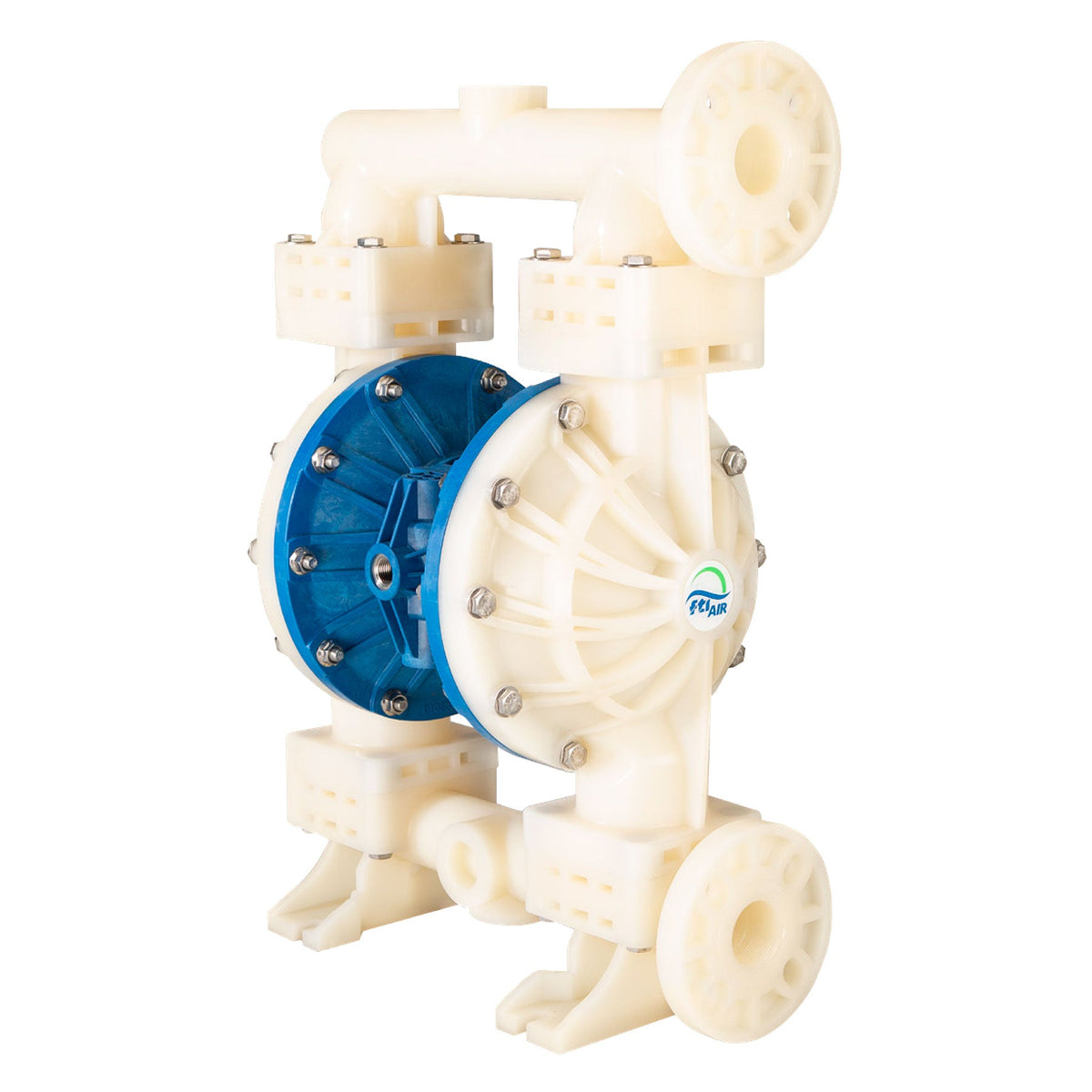

Model FT15Z PVDF 1-1/2 in. Non-Metallic Diaphragm Pump

FTI AirSKU: FT15ZV-PP-RRVR-N1

Grid List
1-1/2 in. FT15Z PVDF Non-Metallic Diaphragm Pump Santoprene
Diaphragm:
Price:
Sale price$5,482.50
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1-1/2 in. FT15Z PVDF Non-Metallic Diaphragm Pump Santoprene
FT15ZV-PP-RRVR-N1
$5,482.50
1-1/2 in. FT15Z PVDF Non-Metallic Diaphragm Pump PTFE/Santoprene
FT15ZV-PP-2TVC-N1
$5,846.28
1-1/2 in. FT15Z PVDF Non-Metallic Diaphragm Pump EPDM
FT15ZV-PP-EEVE-N1
$5,480.78

Product has been added to your cart

Please input the Quantity!

Description

FTI Air Model FT15Z pumps features a unique stall free air valve that is simple, rugged and reliable and requires no separate pilot valve or a mechanically operated pilot valve. Bolted construction provides leak-free fluid handling. FTI Air products have fewer parts, simpler design and are less prone to failure.

Construction:

  • Wetted Materials: PVDF
  • Diaphragm Materials: Santoprene, PTFE, EPDM
  • Ball Materials: EPDM, Santoprene, PTFE
  • Seat Materials: PVDF
  • O-ring Materials: EPDM, Santoprene, FEP/FKM

Wetted Non-wetted Diaphragm Valve/Ball
#1 PVDF Polypropylene
Santoprene
Santoprene
#2 PVDF Polypropylene PTFE/ Santoprene PTFE
#3 PVDF Polypropylene EPDM EPDM
Valve Seat O-Ring Connection Part No.
#1 PVDF Santoprene
FNPT FT15ZV-PP-RRVR-N1
#2 PVDF FEP/FKM FNPT FT15ZV-PP-2TVC-N1
#3 PVDF EPDM
FNPT FT15ZV-PP-EEVE-N1


* Santoprene is a registered tradename of Exxon Mobil Corporation
