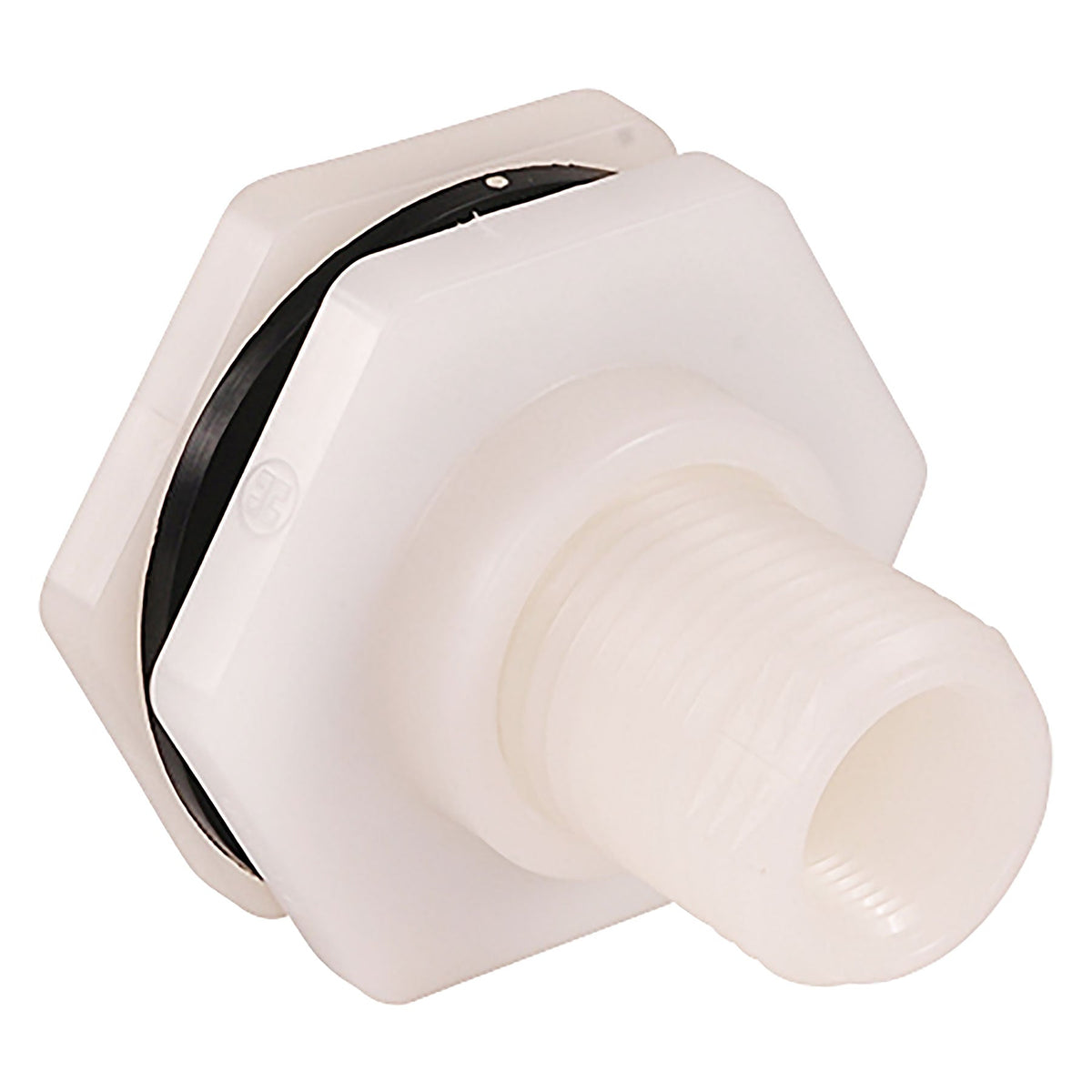

Polypropylene Bulkhead, BFA Series, Long Shaft, Large Flange, 1/2 in. to 1 in. Sizes

HaywardSKU: BFA3005TEL

Grid List
1/2 in. EPDM Thr x Thr PP Bulkhead
Size:
Gasket:
Connection:
Price:
Sale price$46.18
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM Thr x Thr PP Bulkhead
BFA3005TEL
$46.18
1/2 in. FPM Thr x Thr PP Bulkhead
BFA3005TFL
$59.42
3/4 in. EPDM Thr x Thr PP Bulkhead
BFA3007TEL
$55.10
1 in. EPDM Thr x Thr PP Bulkhead
BFA3010TEL
$70.62
3/4 in. FPM Thr x Thr PP Bulkhead
BFA3007TFL
$69.34
1 in. FPM Thr x Thr PP Bulkhead
BFA3010TFL
$90.59

Product has been added to your cart

Please input the Quantity!

Description

BFA Large Flange Series bulkhead fittings are the perfect solution for extra large tanks. Designed with a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC, and PP. Available with FPM (FKM) or EPDM gasket.
Hayward PP Bulkhead Fitting BFA - Large Flange Specs

All measurements in inches unless specified

Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 12.00 11.00 2.08 1.38 1.41
3/4" 13.50 12.75 2.08 1.63 1.66
1" 20.50 18.50 2.08 1.87 1.91
