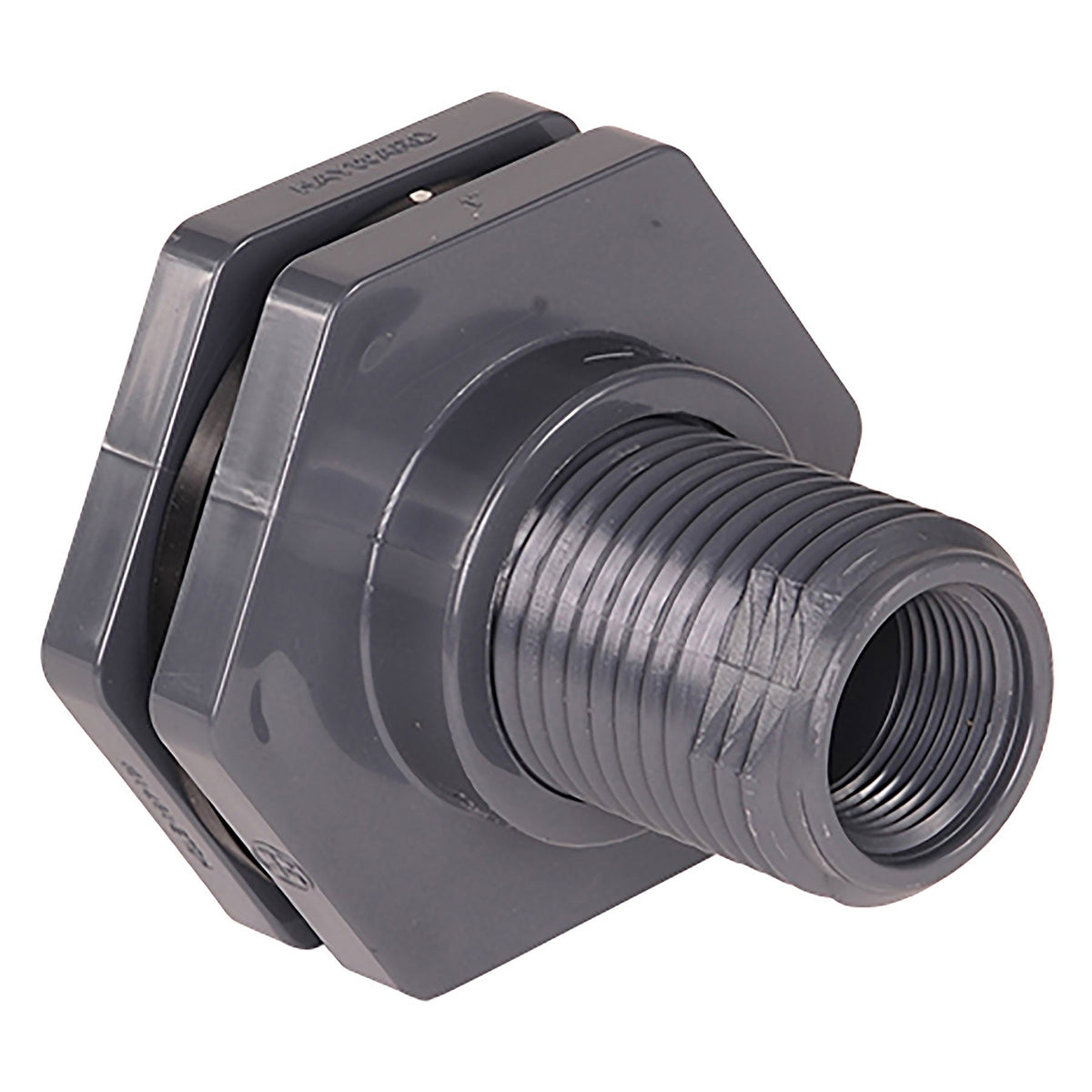

Hayward PVC Bulkhead BFA Large Flange Long Shaft 1/2 to 1 in.
Roll over image to zoom in Click on image to zoom
Hayward PVC Bulkhead BFA Large Flange Long Shaft 1/2 to 1 in.

PVC Bulkhead, BFA Series, Long Shaft, Large Flange, 1/2 in. to 3 in. Sizes

HaywardSKU: BFA1005CEL
Grid List
1/2 in. EPDM Soc x Thr PVC Bulkhead
Size:
Gasket:
Connection:
Price:
$33.26
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Note: Priced . Sold in quantities of 1.

Description
SKU
Price
Qty.
1/2 in. EPDM Soc x Thr PVC Bulkhead
BFA1005CEL
$33.26
1/2 in. FPM Soc x Thr PVC Bulkhead
BFA1005CFL
$48.73
1/2 in. EPDM Soc x Soc PVC Bulkhead
BFA1005SEL
$33.26
1/2 in. EPDM Thr x Thr PVC Bulkhead
BFA1005TEL
$33.26
3/4 in. EPDM Soc x Thr PVC Bulkhead
BFA1007CEL
$36.31
1 in. EPDM Soc x Thr PVC Bulkhead
BFA1010CEL
$39.49
1/2 in. FPM Soc x Soc PVC Bulkhead
BFA1005SFL
$48.73
1/2 in. FPM Thr x Thr PVC Bulkhead
BFA1005TFL
$48.73
3/4 in. FPM Soc x Thr PVC Bulkhead
BFA1007CFL
$52.46
3/4 in. EPDM Soc x Soc PVC Bulkhead
BFA1007SEL
$36.31
3/4 in. EPDM Thr x Thr PVC Bulkhead
BFA1007TEL
$36.31
1 in. FPM Soc x Thr PVC Bulkhead
BFA1010CFL
$58.97
1 in. EPDM Soc x Soc PVC Bulkhead
BFA1010SEL
$39.49
1 in. EPDM Thr x Thr PVC Bulkhead
BFA1010TEL
$39.49
3/4 in. FPM Soc x Soc PVC Bulkhead
BFA1007SFL
$52.46
3/4 in. FPM Thr x Thr PVC Bulkhead
BFA1007TFL
$52.46
1 in. FPM Soc x Soc PVC Bulkhead
BFA1010SFL
$58.97
1 in. FPM Thr x Thr PVC Bulkhead
BFA1010TFL
$58.97

Product has been added to your cart

Please input the Quantity!

Description

BFA Large Flange Series bulkhead fittings are the perfect solution for extra large tanks. Designed with a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC, and PP. Available with FPM (FKM) or EPDM gasket.
Hayward PVC Bulkhead Fitting BFA - Large Flange Specs

All measurements in inches unless specified

Bulkhead Size Min Rigid Tank Radius Min Flexible Tank Radius Max Wall Min Hole Max Hole
1/2" 12.00 11.00 2.08 1.38 1.41
3/4" 13.50 12.75 2.08 1.63 1.66
1" 20.50 18.50 2.08 1.87 1.91
